Steam Generator GS08M
Availability : In Stock


No features available.

GS08M series is available in 4.5kW,6kw,7.5kw, 9kw,10.5kW,12kW,15kW,18kW,the users could choose different KW according to their steam room size. GS08M steam generator comes with GS08M control panel. Multi steam generators can be work together with one control panel, or 2pcs control panels can be work together with one steam generator.

                                                                                      Features

Product Model Number GS08M
Rated Power 4.5KW——18KW
Voltage 110V ~ 125V / 215V ~ 240V / 380V ~ 415V
Phase Single Phase/3Phase
Frequency 50~60HZ
Controller Water-proof Touch Screen Controller
Heating elements Material Stainless Steel 316 with UL Certificate,Teflon coated , Long lifespan
Water Tank Material Stainless Steel 304
                                                                            Standard Functions
Cleaning Manual cleaning

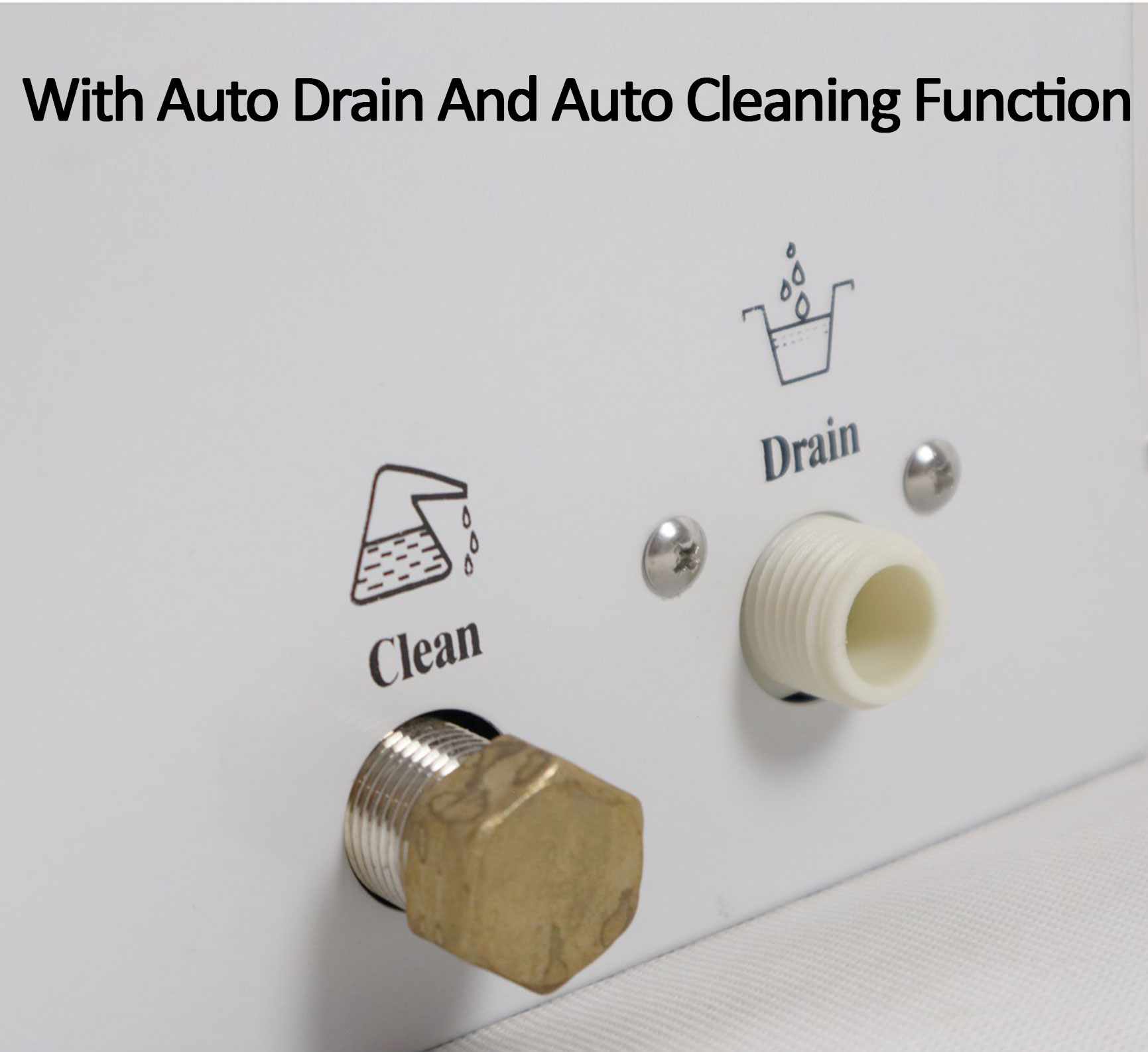

Big Drain Valve Drain water and water scale after cleaning
Auto water inlet Water get into the tank automatically
Auto draining Drain out water automatically after steam shower
Auto flushing Flush water tank automatically, to reduce water scale
Auto power off Powered off automatically

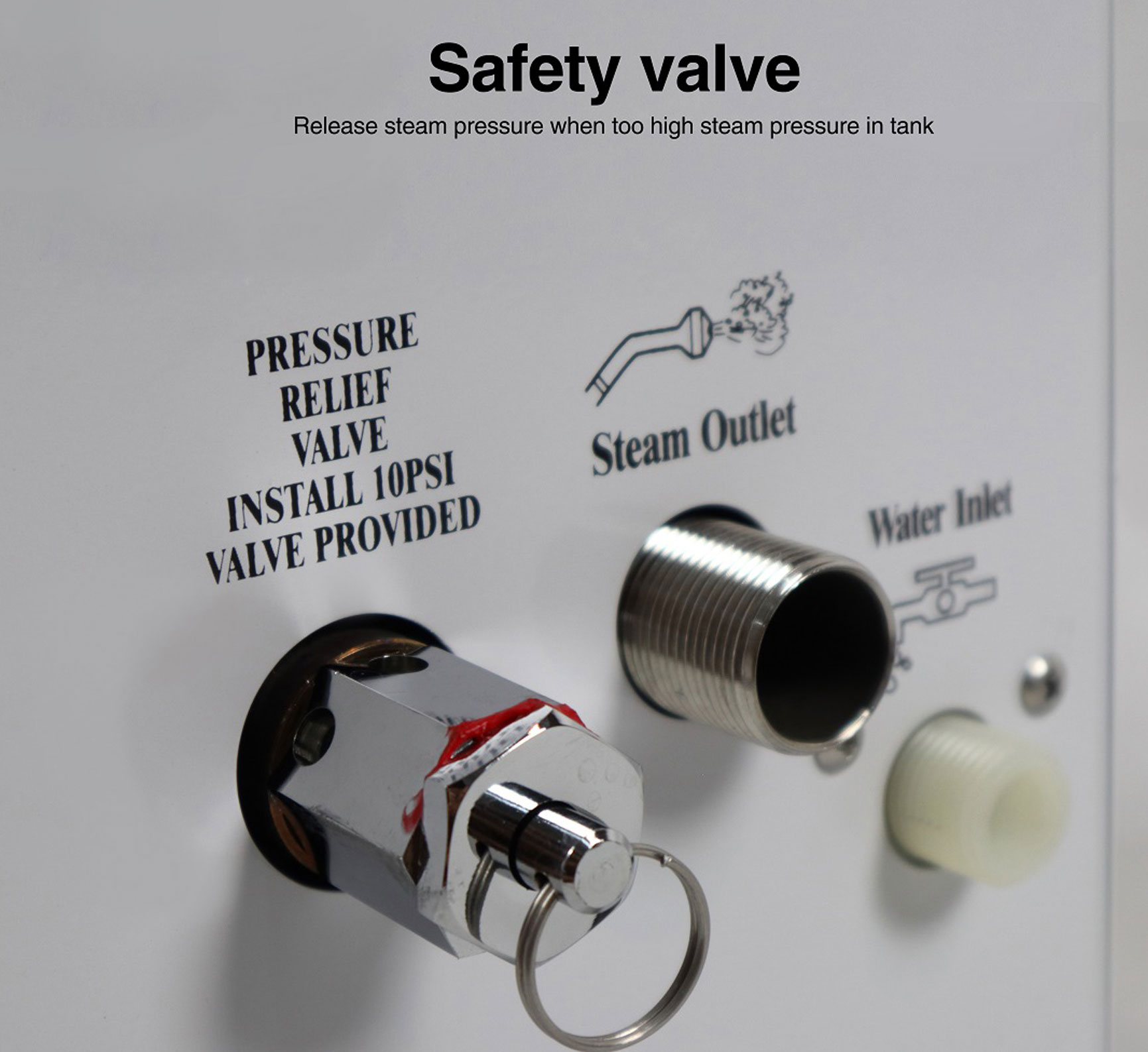

Overheat protection with manual/Auto. overheat protector
Time Setting 1-8hours
Temperature Setting 25-68? or 78-155 ?
Buletooth Buletooth Music
                                                                         Standard Configurations

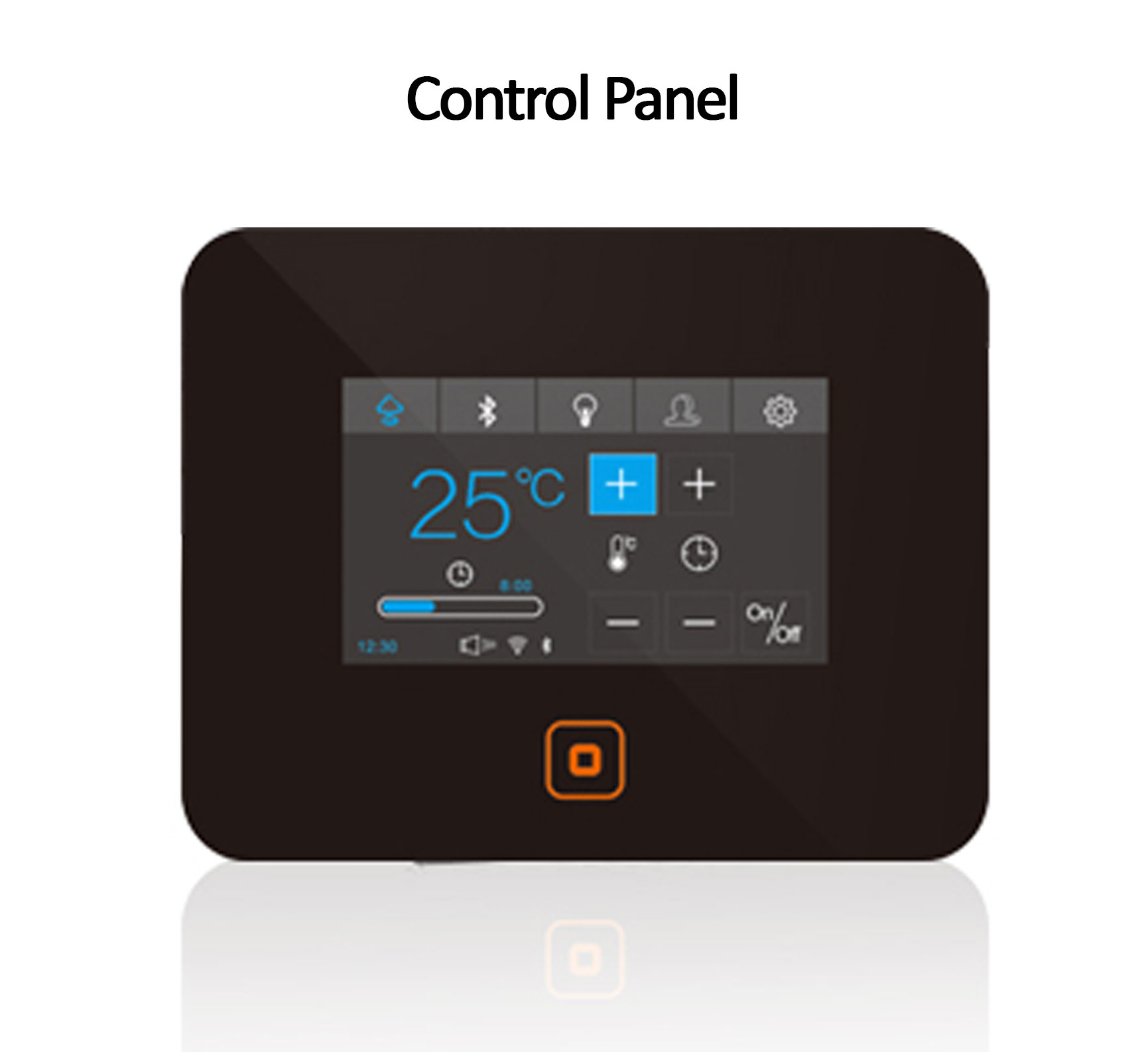

Touch screen control panel Waterproof. Installed inside or outside of steam room
chrome finished brass  steam nozzle Durable, Good looking
Big diameter auto draining valve Drain out hard water and lime scale, extend service life
Temperature sensor Durable, Good looking
Type Applicable space of the room (m) Electricity supply Max electric currant (A) Specification for power wire
GS08M-4.5 KW 4~7 220-240V~(1HP/2HP) 20.5A 12# or 4.0 mm
GS08M-6 KW 5~8 220-240V~(1HP/2HP) 27.3A 10# or 6.0 mm
208V~3HP 16.7A 12# or 4.0 mm
308-415V~3HP 9A 12# or 2.0 mm
GS08M-7.5 KW 7~9 220-240V~(1HP/2HP) 34A 8# or 6.0 mm
208V~3HP 21A 10# or 4.0 mm
308-415V~3HP 11.4A 12# or 2.0 mm
GS08M-9 KW 10~12 220-240V~(1HP/2HP) 41A 8# or 8.0 mm
208V~3HP 25A 12# or 4.0 mm
308-415V~3HP 13.7A 12# or 2.0 mm
GS08M-10.5 KW 12~14 220-240V~(1HP/2HP) 48A 8# or 8.0 mm
08V~3HP 29A 8# or 6.0 mm
308-415V~3HP 16A 12# or 4.0 mm
GS08M-12 KW 14~16 220-240V~(1HP/2HP) 55A 6# or 10.0 mm
08V~3HP 33.3A 8# or 6.0 mm
08-415V~3HP 18.2A 12# or 4.0 mm
GS08M-15 KW 18~20 08V~3HP 42A 6# or 8.0 mm
08-415V~3HP 22.8A 12# or 4.0 mm
GS08M-18  KW 20~24 08V~3HP 50A 6# or 10.0 mm
08-415V~3HP 27.3A 10# or 6.0 mm



http://www.hydroplus.co.in/upload_content_image/M1.JPG

http://www.hydroplus.co.in/upload_content_image/M2.JPG

http://www.hydroplus.co.in/upload_content_image/M3.JPG???????

http://www.hydroplus.co.in/upload_content_image/M4.JPG
