Features:

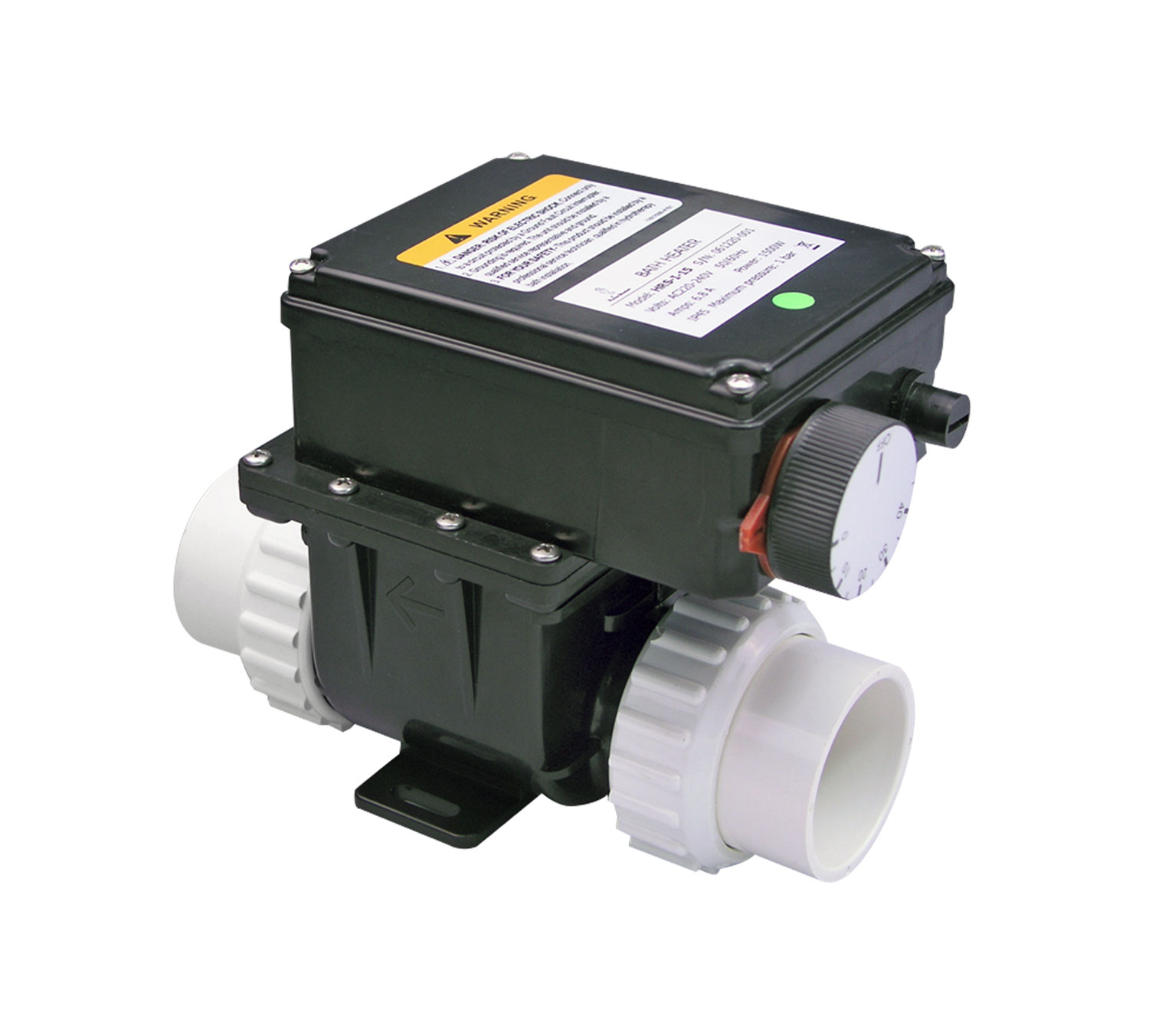

SPA Bathtub Heater, Hot Tub SPA Heater: HR1 series SPA Bathtub Hot Tub Heater, stainless steel casing, three types of shape, to be installed in any position convenience and is available for hydromassage bathtub.
Heating element: Using UL approval metal pipe electric-heating element, Incoloy800 against high temperature and against causticity dedicated stainless steel pipe.
Temperature controlling element: Double sheet metal thermostat, adjust the temperature with 45C or 50C automatic reset, limit temperature with 60C manual reset.
Casing: SUS304 stainless steel, three types of installing(X), 1(I)/2(L)/3(T)
Anti-dry protection: Water pressure switch, the heater power is more than 3000W, Water pressure switch is lead out as a signal line.
Application:
1. Hydromassage bathtub, SPA large outdoor pool, equal heating
Model | Power (W) | (Amps) 220-240V | 110-120V |
Bathtub Water Cubage Gallon | Litre |
G.W (Kg) | Packing Size (mm) | (Qty/20) |
H10-RS1 | 1000 | 45 | 9.0 | 60 | 227 | 1.25 | 230 x 185 x 190 | 3432 |
H15-RS1 | 1500 | 6.8 | 13.6 | 100 | 378 | 1.25 | 230 x 185 x 190 | 3432 |
H20-RS1 | 2000 | 9 | 18 | 200 | 756 | 1.25 | 230 x 185 x 190 | 3432 |
H30-RS1 | 3000 | 13 | - | 340 | 1285 | 1.25 | 230 x 185 x 190 | 3432 |
