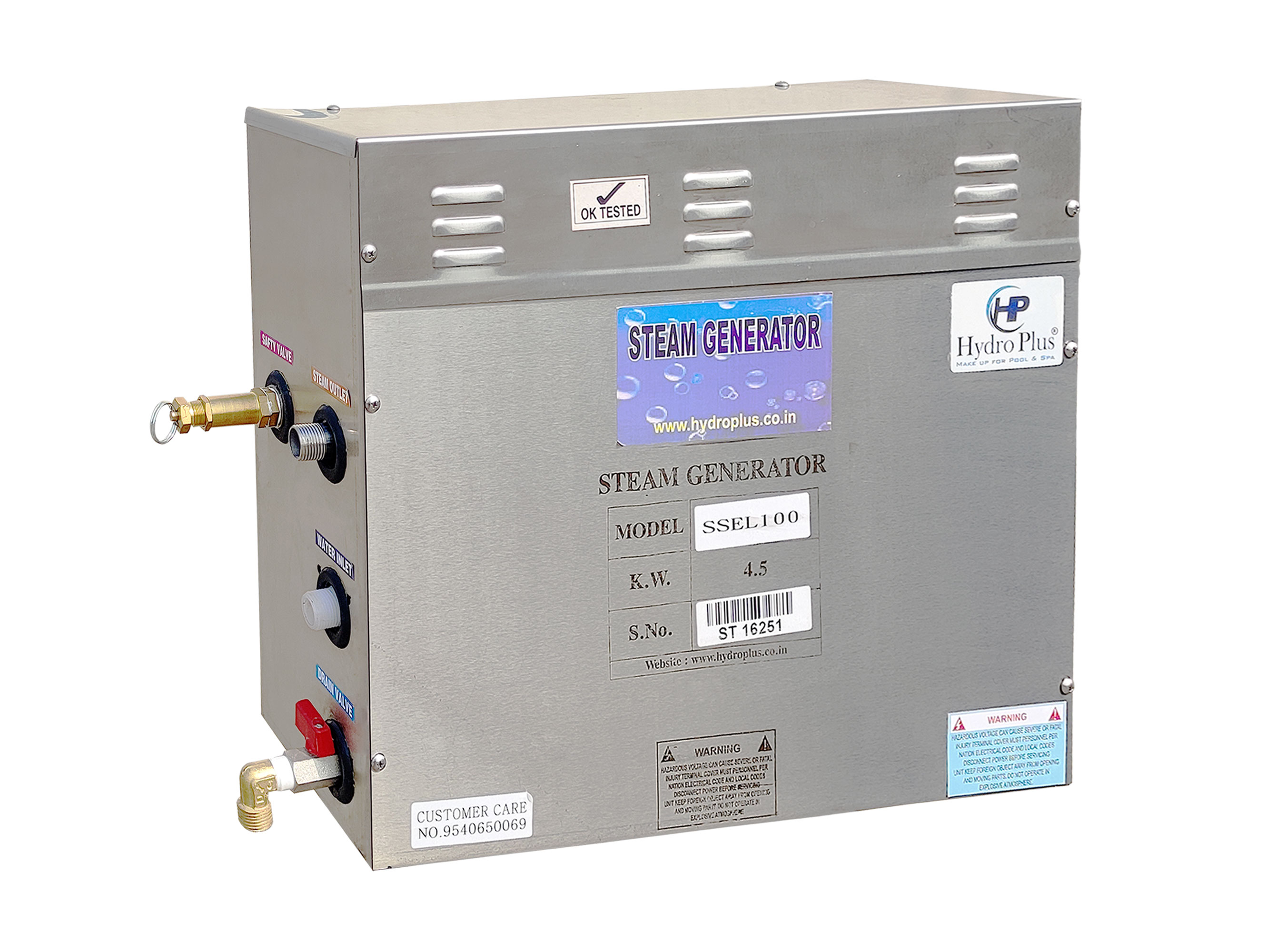

  • Steam Generator SSEL-100
  • Steam Generator SSEL-100
  • Steam Generator SSEL-100
  • Steam Generator SSEL-100

Steam Generator SSEL-100
Availability : In Stock


No features available.

The Steam bath is totally different from bathing. A system generator located outside the steam room itself produces clouds of soothing steam in which to bathe. The 100% humidity means that for most people, the bathing temperature is most comfortable at around 40ºC-45ºC.

Steam Bathing is an excellent treatment for respiratory problems, pain relief, and grant better immunity, it enhances the detoxifying capacity of the skin by opening pores and flushing impurities from the body, it revives tired and strained muscles after physical exertion. You will discover that a steam bath ahead of bath times is an excellent method of promoting a deep restful sleep.

The bathing timing limit is 10-15 minutes. Do not push your body beyond its comfort levels. Drink plenty of water before and after the steam to the bath is to replace fluids lost during bathing.

We are counted among successful Manufacturer, Importer, and supplier of a steam bath. The steam bath is basically designed by us keeping in mind the various requirements of the client to relieve stress. It is very affordable and hence can serve to every class of people. The material used by us in making Steam Bath is of supreme quality.

FEATURES OF STEAM GENERATOR
♦ Digital control panel operated
♦ Auto timer cut-off system
♦ Auto temprature cut-off system
♦ Stainless steel 304 grade
♦ Steam tank stainless steel
♦ 26mm thickness PUF insolution
♦ DRP for heating elements
♦ Water level sensor cut-off to ensure heater
♦ Safety pressure release valve
♦ Flexible hose connector for water feeding
♦ Steam diffuser outlet
♦ Soft touch switches LED display panel
♦ Stainless steel socket for long life
♦ Short circuit protection
♦ High current protection
♦ Earth leakage circuit protection
♦ Hybrid technology used control unit & control panel
♦ Heating element SS 304 / SS316 / incoloy
♦ Auto mode without contrl panel
♦ Water lavel display
♦ Puff insulation
♦ Steam aroma diffuser outlet
♦ Electronic controlled water level sensor cut off system
♦ Microcontroller base system
♦ LED base seven sigment / LCD base display

FEATURES  OF CONTROL UNIT
♦ Temperature sensor
♦ Adjustable digital temperature controller (1C to 99C)
♦ "On/Off" feather touch switch control
♦ Water refress (Drain)
♦ Digital Timer (1 to 60 minutes) with "on/off" switch
♦ Oprating machine indigation system

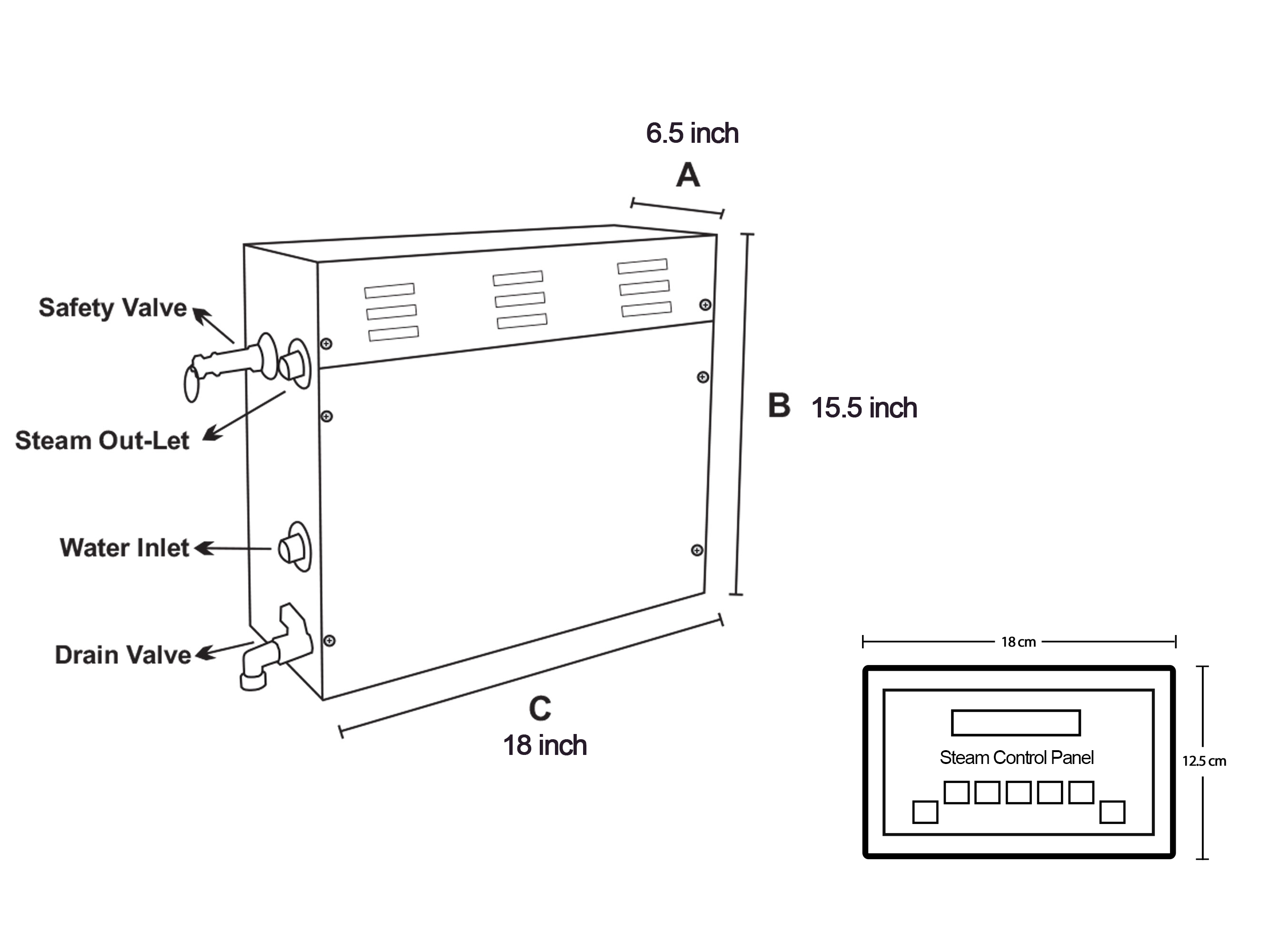

Steam Generator Technical Data
KW   Room Volume  Steam Out-let Voltage Phase Tank Capacity MCB  MCB Type Wire Size Dimension
4.5 80-100 Cu.Ft 1(20mm) 230 Single 8 Ltr. 32A DP mm 18"x6.5"x15.5"
6 120-140 Cu.Ft 1(20mm) 230 Single 10 Ltr. 40A DP mm 18"x6.5"x15.5"
9 180-200 Cu.Ft 2(25mm) 415 Three 15 Ltr. 40A TPN mm 18"x6.5"x15.5"

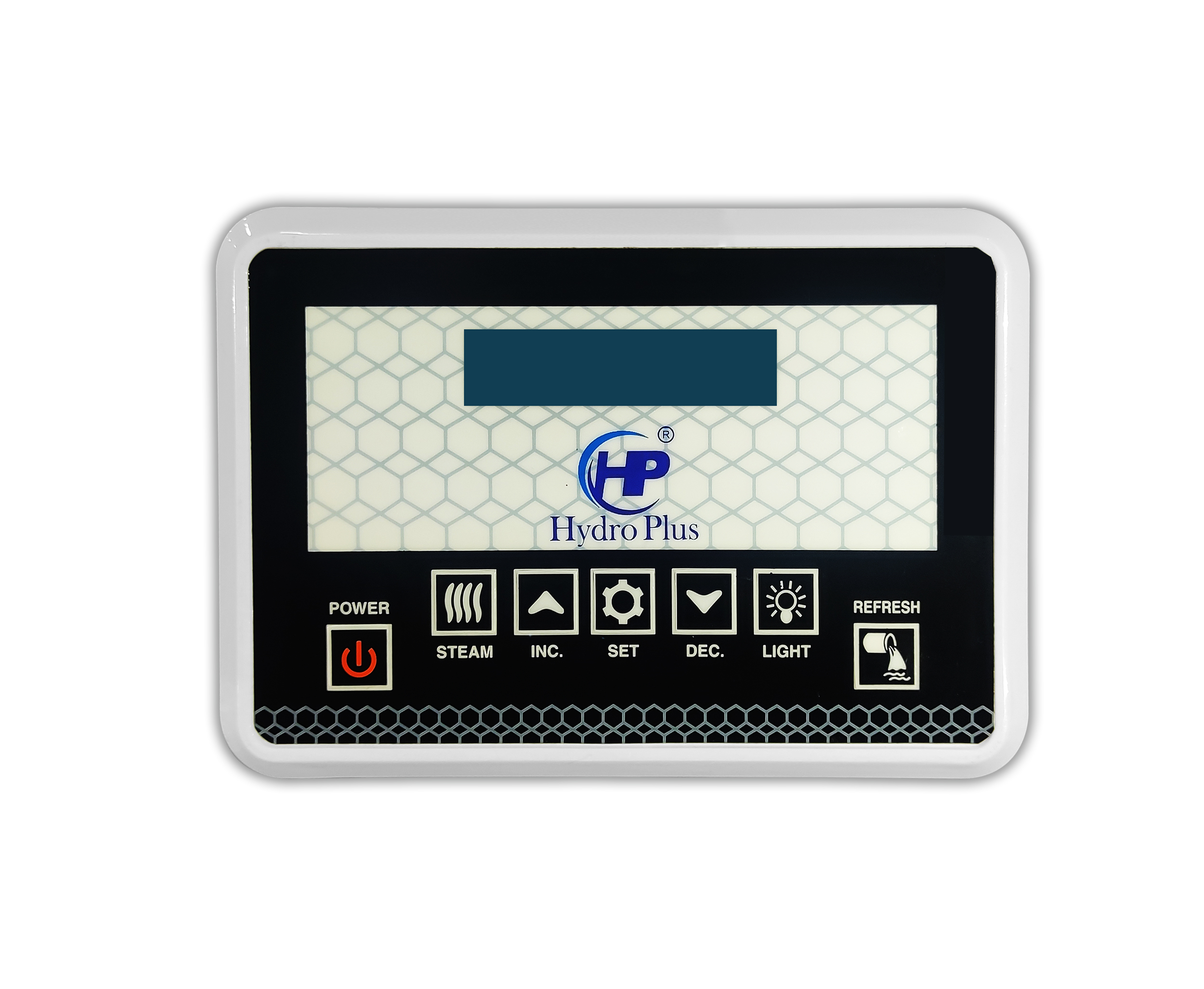

Control Panel Dimension
Name  Dimension (in cm)
Control Panel  L 18 x W 12.5 x H 2.5




Product Details:
Brand  Hydro Plus
Usage/Application  Home / Gym / Spa
Mode Electricity
Phase  Single / Triple
Model  SSEL-200
Display Type Soft Touch Pad Keys
Temperature 1C to 99C
Heating Power  1C to 99C
Automation Grade  Automatic
Material Stainless Steel
Country of Origin Made in India
