DESIGN/ APPLICATION DATA:

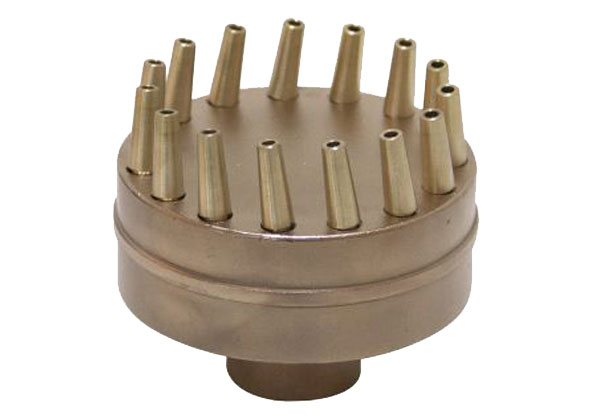

Simple fountain nozzle comprised of a set of 4mm water jets arranged in such a way that on rising they look like diamonds and falling like the stars.
The angel given to the jets means that, from wherever they are positioned, spectators can see the front & back jet cross over producing an aesthetics
effect of great beauty in the architectural fountain. The range is comprised of three sizes with 15, 20 & 30 fountain jets.
SPECIFICATION DATA :
Construction shall be cast bronze with precision clear stream brass nozzle neoprene gasket and stainless steel fasteners.

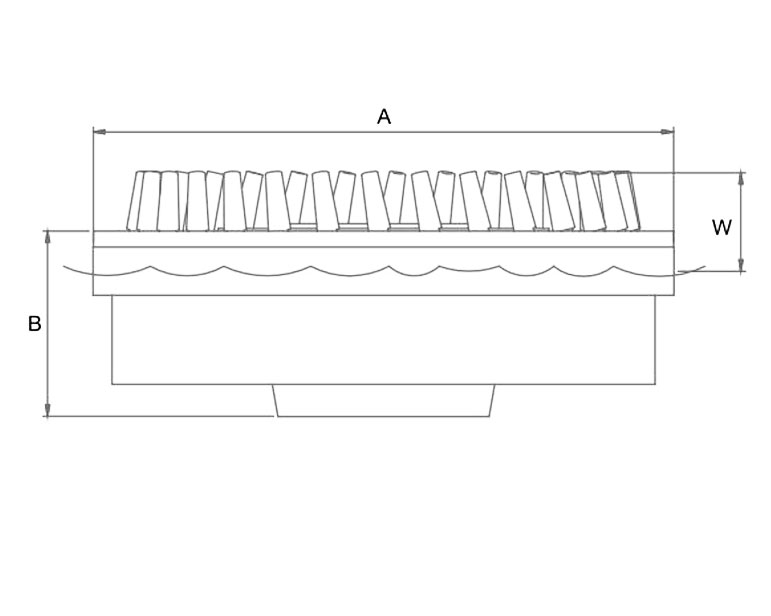

Dimensions
Model | (A) | (B) | (W) |
Diamond Jet (1 inch) | 140 | 100 | 40 |
Diamond Jet (1.5 inch) | 203 | 103 | 45 |
Diamond Jet (2.5 inch) | 254 | 113 | 50 |
Model | Diamond Jet (1 inch 15 Jet) | Diamond Jet (1.5 inch 20 jet) | Diamond Jet (2.5 inch 30 jet) |
Spray Ht. (in m) | LPM | LPM | LPM |
0.50 | 52 | 70 | |
1.00 | 100 | 138 | 207 |
1.50 | 166 | 250 | |
2.00 | 188 | 282 | |
2.50 | 300 | ||
3.00 | 330 |
