Description:- Same as the water curtain except for the waterfalls free and not along strings. Need a larger basin due to the splash created by the free-falling water.
High level of sound created by the falling water.
Size:- Available in a wide variety of ring diameters.
MOC:- GI / SS pipe ring with machined brass nozzles.
Custom:- Rain curtains can be customized for various sizes (circular or straight line) and no. of nozzles.
Type:- Installed in a way that the water flows down free from the ring to the pool.

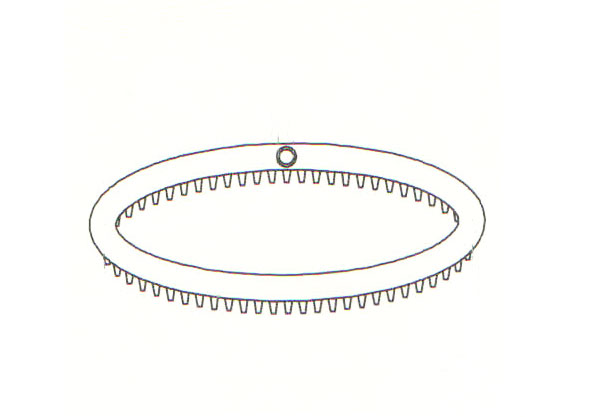

Dimensions
MODEL | A | Inlet (B) |
R. C. Ring 450/56/25 | 0.45m dia | 25mm |
R. C. Ring 600/75/25 | 0.6m dia | 25mm |
R. C. Ring 900/113/25 | 0.9m dia | 25mm |
Flow Rate For Rain Curtain
MODEL | W. C. Ring 450/56/25 | R. C. Ring 600/75/25 | R. C. Ring 900/113/25 |
Fall Ht. (in m) | LPM | LPM | LPM |
3.00 | 68 | 90 | 136 |
