Cluster Jet
Availability : In Stock


No features available.

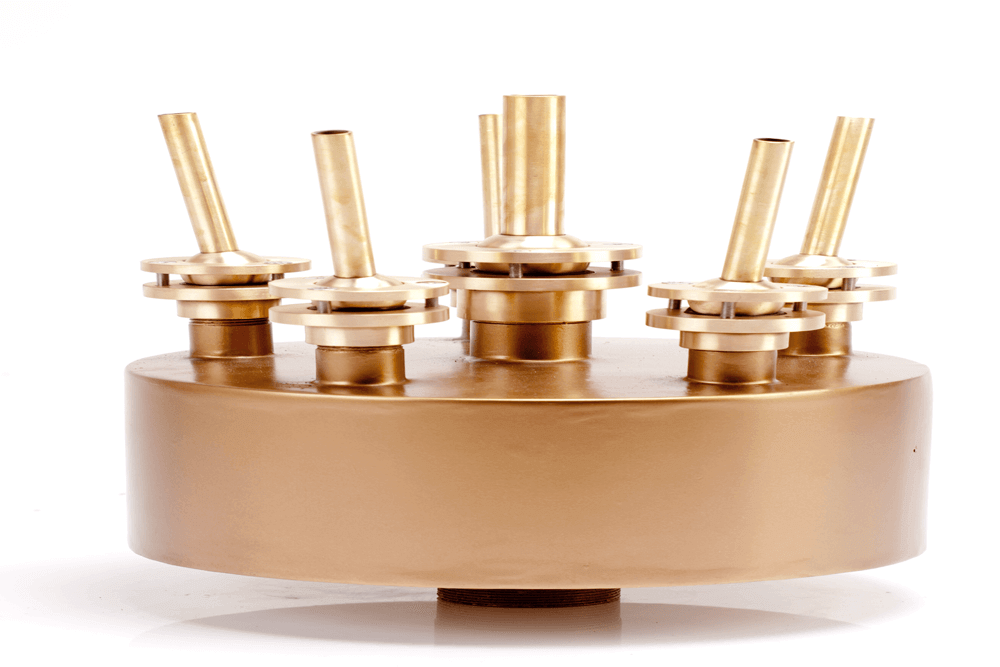

Description - Consists of multiple clear stream jets (Vertical Jet AF) installed on a single manifold to create a large volume of visible water in the air. Ideal for floating fountains or large pools designed for high visibility.

Sizes - Available with 50mm and 100mm inlets and various combinations of nozzles.

MOC - Cast Bronze & Machined Brass.

Custom - Can be customized using a variety of nozzles on the manifold.

Type - Water level independent (no change in water effect with varying water level)

Dimensions

SAP Code Model Inlet (B)
NOZ43.01 2 Ring Cluster Cascade 50/6 (1/40+5/25) 50 mm
NOZ43.02 2 Ring Cluster Cascade 100/6 (1/50+5/40) 100 mm

http://hydroplus.co.in/upload_content_image/cluster-jet.png

Flow Rate For Cluster Cascade Jet Nozzlet

Model Cluster cascade 50/6 Cluster cascade 100/6
Spray Ht. (in m) LPM LPM
6.0m - 3.0m 500 1045
8.0m - 4.0m 577 1204
10.0m - 5.0m 644 1348
12.0m - 6.0m 705 1477
