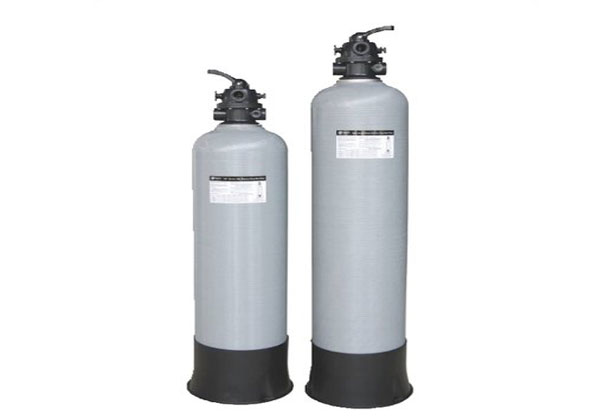

Deep Bed Filter
Availability : In Stock

0
0 review(s) | Add to Wishlist
No features available.

Deep bed filter is designed for filtering incoming water supply oof domestic and light commercial usage. undesires particles like rust, sand, dirt, and other impurities found in water are trapped by the filter deb, offering crystal clear filtered water for domestic and light commercial usage.

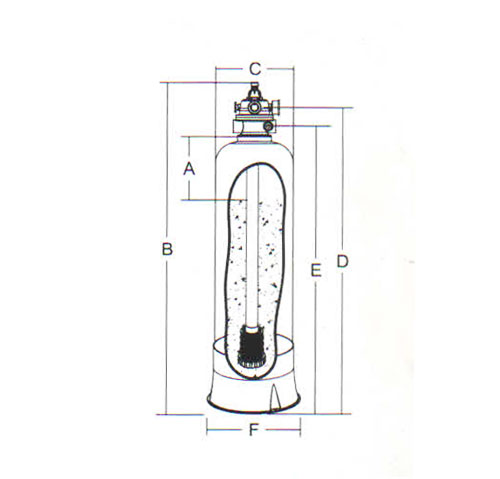

PRODUCT DIMENSION

Model No A mm B mm C mm D mm E mm F mm
HD13300 400 1300 306 1204 1130 343
HD13350 400 1300 356 1204 1130 390
HD13400 400 1300 406 1204 1130 450
HD15300 500 1500 306 1404 1330 343
HD15350 500 1500 356 1404 1330 390
HD15400 500 1500 406 1404 1330 450

http://www.hydroplus.co.in/upload_content_image/deep-bed-filter.jpg

Code Model No Filter Area(m2) Valve Connection Max.Flow Rate Sand (Kg)
88012720 HD13300 0.07 1 inch  |  33mm 58.5|pm  |  3.51m3/h 75
88012721 HD13350 0.10 1 inch  |  33mm 63.3|pm  |  4.10m3/h 98
88012722 HD13400 0.13 1 inch  |  33mm 78.0|pm  |  4.68m3/h 130
88012723 HD15300 0.07 1 inch  |  33mm 53.3|pm  |  3.21m3/h 86
88012724 HD15350 0.10 1 inch  |  33mm 62.5|pm  |  3.75m3/h 118
88012725 HD15400 0.13 1 inch  |  33mm 71.5|pm  |  4.29m3/h 154
