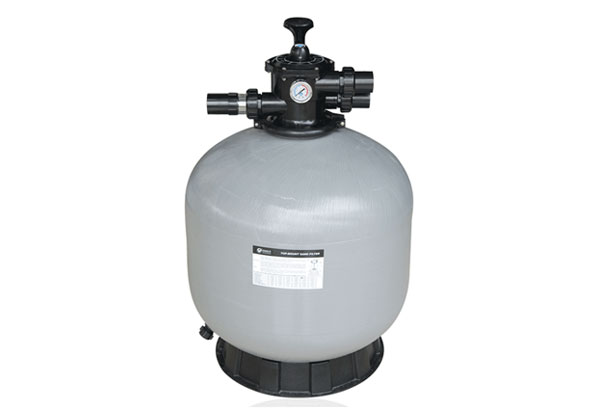

Top Mount Filter V350 - V1200
Availability : In Stock


No features available.

Bobbin-wound fiberglass reinforced tank is still the most popular standard in the industry after all. With UV- resistant surface finishes it is able to operate under prolong sunlight for years of reliability, "V" Series (V350-V1200) Filter are equipped with a six-position, clamp style multiport valve and ABS laterals.


Product Dimension


Model No  A mm B mm C mm D mm E mm F mm
V350 726 619 550 160 355 298
V400 757 640 590 175 410 390
V450 814 698 638 210 455 390
V500 845 730 670 235 535 500
V650 950 835 775 300 635 500
V700 1020 905 845 330 710 500
V700 (B) 1092 960 877 390 723 500
V800 1200 1085 1002 425 800 753
V900 1300 1172 1090 480 900 753
V900 (C) 1334 1242 990 480 900 800
V1000 1400 1340 1260 580 1000 810
V1000 (C) 1434 1410 1160 580 1000 857
V1200 1600 1550 1468 740 1200 995
V1200 (C) 1634 1620 1368 740 1200 1042

http://www.hydroplus.co.in/upload_content_image/Untitled-1.jpg



Code Model No  Filter Area (m2) Valve Connection Max Flow Rate Sand (Kg)
88010101 V350 0.09 1.5 inch  |  50 mm 72 |pm  |  4.32m3/h 20
88010102 V400 0.13 1.5 inch  |  50 mm 108|pm  |  6.48m3/h 35
88010103 V450 0.16 1.5 inch  |  50 mm 135|pm  |  8.10m3/h 45
88010104 V500 0.22 1.5 inch  |  50 mm 185|pm  |  11.10m3/h 85
88010105 V650 0.32 1.5 inch  |  50 mm 260|pm  |  15.60m3/h 145
88010107 V700 0.40 1.5 inch  |  50 mm 325|pm  |  19.50m3/h 210
88010608 V700 (B) 0.41 2.0 inch  |  63 mm 336|pm  |  20.16m3/h 215
88010609 V800 0.50 2.0 inch  |  63 mm 415|pm  |  24.90m3/h 355
88010610 V900 0.64 2.0 inch  |  63 mm 520|pm  |  31.20m3/h 470
88010650 V900 (C) 0.64 2.5 inch  |  75 mm 533|pm  |  32.00m3/h 470
88010611 V1000 0.79 2.0 inch  |  63 mm 650|pm  |  39.00m3/h 620
88010651 V1000 (C) 0.79 2.5 inch  |  75 mm 658pm  |  39.50m3/h 620
88010613 V1200 1.13 2.0 inch  |  63 mm 860|pm  |  51.60m3/h 860
88010652 V1200 (C) 1.13 2.5 inch  |  75 mm 941|pm   |  56.50m3/h 860
